Desk Setup Guide

Running Desk​

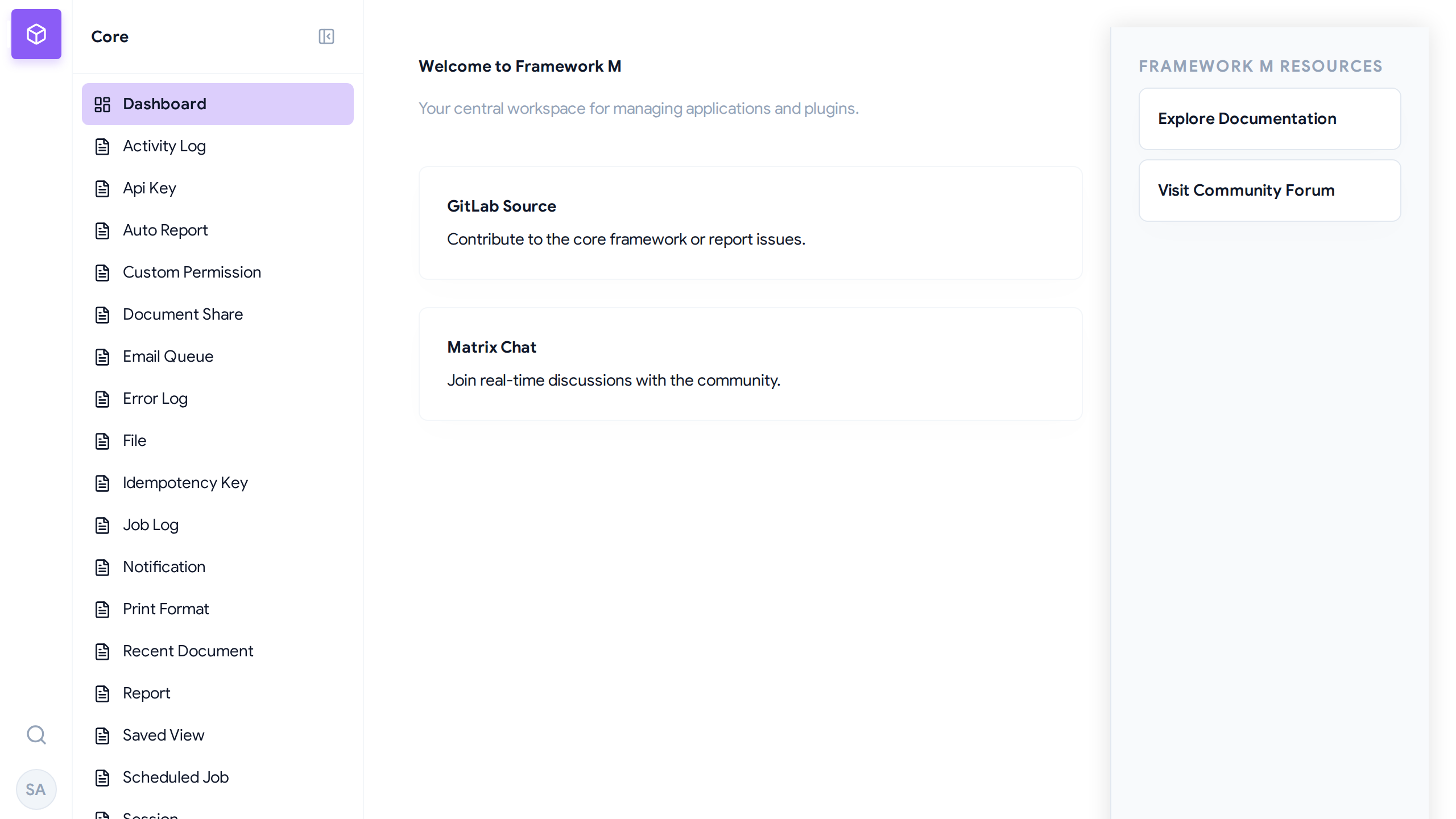

The Desk provides the main user interface for managing your Framework M application data and workflows.

Single Command (Production)​

m prod

This starts the backend server with the bundled Desk UI on port 8888.

Development Mode​

For development with hot reload:

m dev

This starts both backend and frontend with automatic hot reload using honcho process manager.

URL Structure​

The Desk uses a path prefix architecture for clean separation:

  • UI: http://127.0.0.1:8888/desk/

    • Main interface for managing data
    • All frontend routes are under /desk/*

  • API: http://127.0.0.1:8888/api/

    • Backend endpoints for data operations
    • All API routes are under /api/*

  • Root: http://127.0.0.1:8888/

    • Automatically redirects to /desk/

Commands​

m prod - Production Mode​

Runs the backend with bundled static Desk UI:

# Default (port 8888)
m prod

# Custom port
m prod --port 3000

# Custom app module
m prod --app myapp:create_app

# With auto-reload
m prod --reload

Use Cases:

  • Production deployments
  • Testing bundled UI
  • Single-process server

m dev - Development Mode​

Runs backend and frontend concurrently with hot reload:

# Backend + Frontend
m dev

# Backend + Frontend + Studio
m dev --studio

# Custom backend module
m dev --app myapp:create_app

# Custom frontend directory
m dev --frontend-dir ./custom-ui

# Backend only (no frontend)
m dev --no-frontend

# Custom ports
m dev --port 9999 --frontend-port 3000 --studio-port 9999

# Enable worker and scheduler
m dev --enable-worker --enable-scheduler

# Use custom Procfile
m dev --procfile Procfile.dev

Features:

  • ✅ Hot Reload: Backend (uvicorn) and frontend (Vite HMR)
  • ✅ Process Management: Honcho manages multiple processes
  • ✅ Concurrent Output: Color-coded logs with process prefixes
  • ✅ Graceful Shutdown: Ctrl+C stops all processes cleanly
  • ✅ Configurable: Supports Procfile and m.toml configuration
  • ✅ Extensible: Add workers, schedulers, custom processes

Default Ports:

ProcessPort
Backend8888
Frontend5173
Studio9999

New CLI Flags:

FlagDescription
--enable-workerStart worker process for background jobs
--enable-schedulerStart scheduler process for periodic tasks
--procfile <path>Load custom Procfile for process definitions

Configuration​

The m dev command supports multiple configuration sources with the following precedence:

Configuration Precedence (highest to lowest):

  1. CLI flags (e.g., --enable-worker, --port 9999)
  2. Procfile (if specified with --procfile)
  3. m.toml [dev] section
  4. Default processes

Using m.toml​

Create a m.toml file in your project root:

[dev]
# Override default ports
backend_port = 8888
frontend_port = 5173

# Enable optional processes
enable_worker = true
enable_scheduler = false

# Override default commands (optional)
backend_command = "uvicorn app:app --reload --port 8888 --log-level debug"

# Use a custom Procfile (optional)
procfile = "Procfile.dev"

# Define custom processes
[dev.processes.mailhog]
command = "mailhog -smtp-bind-addr 127.0.0.1:1025 -ui-bind-addr 127.0.0.1:8025"
enabled = false  # Set to true to enable

[dev.processes.redis]
command = "redis-server --port 6379"
enabled = false

See full example: docs/examples/m.toml

Using Procfile​

Create a Procfile.dev file in your project root:

# Procfile.dev
backend: python -m uvicorn framework_m_standard.adapters.web.app:create_app --host 127.0.0.1 --port 8888 --reload
frontend: cd frontend && pnpm dev --port 5173
worker: m worker --concurrency 4
scheduler: m worker --scheduler-only

Then run:

m dev --procfile Procfile.dev

See full example: docs/examples/Procfile.dev

Configuration Examples​

Example 1: Enable worker in m.toml

[dev]
enable_worker = true
m dev  # Worker automatically starts

Example 2: Mix m.toml with CLI flags

[dev]
backend_port = 9999
m dev --enable-scheduler  # Uses port 9999 from m.toml, adds scheduler from CLI

Example 3: Full custom Procfile

backend: uvicorn app:app --reload
frontend: cd ui && pnpm dev
worker: m worker --concurrency 8
scheduler: m worker --scheduler-only
mailhog: mailhog -smtp-bind-addr 127.0.0.1:1025
redis: redis-server
m dev --procfile Procfile.dev

Architecture​

Path Prefix Separation​

The Desk implements complete separation between UI and API routes:

/desk/*     → React SPA (HTML pages)
/api/*      → JSON API endpoints
/           → Redirects to /desk/

This architecture:

  • ✅ Prevents route collisions
  • ✅ Enables clean URLs (no hash fragments)
  • ✅ Works with single-command deployment
  • ✅ Supports proper Content-Type headers

Static Assets​

Static assets (JS, CSS, images) are served at:

/desk/assets/*

The Vite build process outputs to libs/framework-m/src/framework_m/static/ which is included in the Python package.

Process Management (m dev)​

When running m dev, honcho orchestrates multiple processes:

┌─────────────────────────────────────────┐
│     honcho.manager.Manager              │
│                                         │
│  ┌──────────┐  ┌──────────┐  ┌────────┐│
│  │ backend  │  │ frontend │  │ studio ││
│  │ :8888    │  │ :5173    │  │ :9999  ││
│  └──────────┘  └──────────┘  └────────┘│
│                                         │
│  • Color-coded output                   │
│  • Concurrent execution                 │
│  • Graceful shutdown                    │
└─────────────────────────────────────────┘

API Endpoints​

Health Check​

curl http://127.0.0.1:8888/health

Authentication​

curl http://127.0.0.1:8888/api/v1/auth/me

List DocTypes​

curl http://127.0.0.1:8888/api/meta/doctypes

Translations​

curl http://127.0.0.1:8888/api/v1/Translation?locale=en

Building for Production​

Build Frontend​

cd frontend
pnpm build

This outputs to dist/ which should be copied to libs/framework-m/src/framework_m/static/.

Update Bundled Static​

# After building frontend
cp -r frontend/dist/* libs/framework-m/src/framework_m/static/

Package Python​

cd libs/framework-m
uv build

The built wheel includes the static frontend assets.

Development Workflow​

Initial Setup​

  1. Install dependencies:

    uv sync

  2. Install your app (if custom):

    cd apps/myapp
    uv pip install -e .

  3. Start development server:

    m dev

Hot Reload in Action​

Backend Changes:

# Edit any Python file
# WatchFiles detects changes
# Server automatically restarts

Frontend Changes:

# Edit any React/TS file
# Vite HMR updates instantly
# No page reload needed

Git Noise and Local Builds​

Avoid running pnpm build locally during development.

Running pnpm build updates the static assets in libs/framework-m/src/framework_m/static/. Since Vite includes hashes in filenames (e.g., index-a1b2c3.js), every build modifies tracked files, creating unnecessary git noise.

Best Practice:

  • Use m dev for frontend development
  • Rely on CI/CD for release builds
  • Local pnpm build is only necessary to verify production artifacts

Troubleshooting​

UI Downloads Instead of Rendering​

If the browser downloads HTML files instead of rendering them, check:

  1. Content-Type Headers: Ensure responses have Content-Type: text/html; charset=utf-8
  2. Route Handlers: Verify return type is Response not union types
  3. Browser Cache: Clear browser cache and hard reload (Ctrl+Shift+R)

If refreshing a page like /desk/doctypes/User gives 404:

  1. Check Route Handler: Ensure /desk/{path:path} wildcard route exists
  2. SPA Fallback: Verify the handler returns index.html for non-file paths
  3. Base Path: Confirm React Router uses basename="/desk"

API Calls Failing​

If API calls return errors:

  1. CORS: Check CORS configuration allows your origin
  2. Path Prefix: Ensure API calls use /api/* prefix
  3. Server Running: Verify m prod or m dev is running on the correct port

Hot Reload Not Working​

If changes aren't being detected:

Backend:

  1. Check WatchFiles is enabled (look for "Started reloader process" in logs)
  2. Verify file is in watched directory
  3. Try --reload flag explicitly

Frontend:

  1. Ensure m dev is running (not m prod)
  2. Check Vite dev server is on port 5173
  3. Verify WebSocket connection in browser DevTools

DocTypes Not Appearing​

If your custom DocTypes don't show in the sidebar:

  1. Install your app: cd apps/myapp && uv pip install -e .
  2. Check entry points: Verify pyproject.toml has [project.entry-points."framework_m.apps"]
  3. Restart server: DocTypes are discovered at startup
  4. Check logs: Look for "Discovered X DocType(s) from app 'myapp'"

Quick Reference​

CommandUse CaseHot Reload
m prodProduction, bundled UIOptional (--reload)
m devDevelopment, both servers✅ Always
m dev --studioDevelopment + Studio✅ Always
m dev --no-frontendBackend only dev✅ Backend only
